IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

Product Categories
Chengdu Zongheng Intelligence Control Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

Brand Name : IOTROUTER

Model Number : ZHT0800

Certification : CE FCC RoHs

Place of Origin : Sichuan, CHINA

MOQ : 1PCS

Price : USD22~28/PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/MONTH

Delivery Time : 1 WEEK

Packaging Details : 270*180*55mm CARTON PACKAGE

Material : PLASTIC

Interface : RS485/8DO

Protocol : MODBUS RTU

Product Name : Modbus RTU Remote IO Module

Function : Data Collection

Application : IOT Solutions

Working Voltage : 12V

Module Type : RS485

OEM : Support

Contact Now

Modbus RTU Remote IO Module 8 Channel rs485 Control Connector for IOT Solutions​

Parameters of ZHT0800

DATASHEET
1
Module Size
115*90.5*41mm
2
Acquisition Channel
8 Channel relay output
3
Serial Interface
RS485
4
Supply Voltage
5 ~ 36V DC
5
Working Current
12V/50mA
6
Operating Temperature
-40℃~+65℃

  • Introduction​ of ZHT0800

Product model: ZHT0800, the product is mainly used to expand the interface of RTU products and does not provide communication functions. Provide 8DO interface and 8 relay outputs.

Features: The relay output is isolated, supports dry and wet node detection, and supports delayed shutdown after the relay is opened, which is simple and convenient to use.

Standardized Protocol:

One of the most widely used standard communication protocols for eAutomation development.

Centralized Control:
Universal remote I/O modules to operate the system via Modbus.

Application: Weather station monitoring, monitoring temperature, temperature, pressure, gas, PM2.5, customs, rainfall and other sensor data.

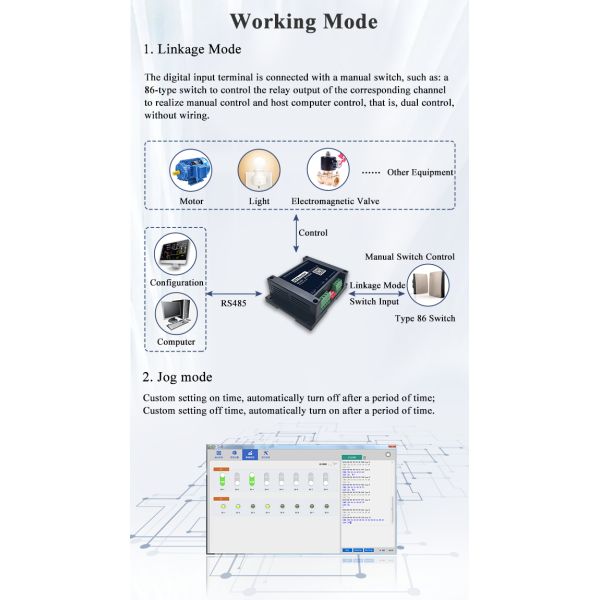

Working Mode of ZHT0800

1. Linkage Mode

The digital input terminal is connected with a manual switch, such as: a 86-type switch to control the relay output of the corresponding channel to realize manual control and host computer control, that is, dual control, without wiring.

2.Jog Mode

Custom setting on time, automatically turn off after a period of time.

Custom setting off time, automatically turn on after a period of time.

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

IOT Solutions Remote Input Output Module 8 Channel Rs485 Control Connector

ZHT0800
RS485 Modbus √
8 Channel Relay Output √
Standard Modbus Protocol √
